Product Title:
Automated Polymer Preparation & Dosing System for Wastewater Treatment
Brief Introduction
Longdai Co., Ltd., located in Yixing, Jiangsu Province, China, is a specialized supplier of processing equipment for the petrochemical and environmental industries. We integrate independent R&D, design, engineering, manufacturing, and material supply to deliver comprehensive solutions for water and wastewater treatment.
Technical Parameters
| Type | QJY-500 | QJY-1000 | QJY-1500 | QJY-2000 | QJY-3000 |
|---|---|---|---|---|---|
| Production Capacity (L/h) | 500 | 1000 | 1500 | 2000 | 3000 |
| Overall Size (mm) | 900x1500x1650 | 1000x1625x1750 | 1000x2440x1800 | 1220x2440x1800 | 1220x3200x2000 |
| Powder Dosing Power (kW) | 0.18 | 0.18 | 0.18 | 0.18 | 0.18 |
| Agitator Blade Diameter (mm) | 250 | 250 | 250 | 250 | 250 |
| Spindle Speed (r/min) | 96 | 96 | 96 | 96 | 96 |
| Agitator Power (kW) | 0.55 x 2 | 0.55 x 2 | 0.55 x 2 | 0.55 x 2 | 0.55 x 2 |
| Dosing Pump Flow (m³/h) | 1 | 1 | 1.5~2.0 | 1.5~2.0 | 3.0~5.0 |
| Dosing Pump Lift (m) | 20 | 20 | 20 | 20 | 20 |
| Dosing Pump Power (kW) | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 |
| Inlet/Outlet Diameter (mm) | 20 | 20 | 25 | 25 | 32 |
Applications
This automated dosing system is designed for the preparation and injection of water treatment chemicals in various applications, including:
Supply water, boiler water, circulating water, and wastewater treatment in power plants
Petroleum, chemical, environmental protection, and water supply industries
Ventilation and condenser systems to prevent scaling caused by calcium carbonate, magnesium carbonate, and biological sludge, thereby maintaining operational efficiency.

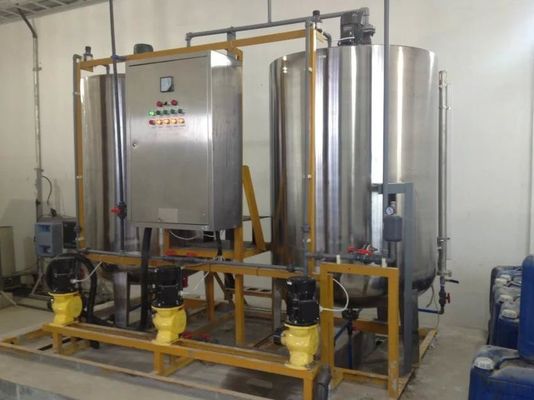

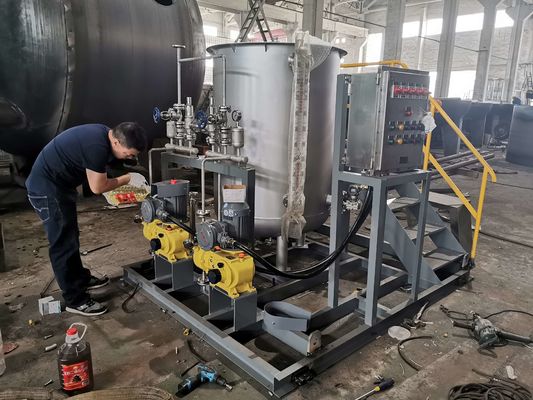

System Structure
The system is a skid-mounted unit integrating major components including:
Solution tanks
Mixers
Metering pumps (or screw pumps)
Y-type filters
Safety valves, back-pressure valves, check valves
Pulse dampeners
Level gauges and pressure gauges
Control cabinet and installation platform
Designed for plug-and-play operation, the unit only requires connection to feeding pipes and power supply. It automatically monitors fluid pH and adjusts chemical dosing accordingly. This integrated approach significantly reduces engineering and installation efforts, enabling largely unattended operation and ensuring system reliability and safety.
Key Features
Three-Tank Continuous Preparation: Ensides consistent operation with easy access for operation and maintenance.
Dual Feeding Capability: Supports both dry powder and liquid polymer feeding for flexibility based on process requirements.
Full Automation: PLC-controlled operation reduces manual intervention and enhances reliability.
Precise Dosing Options: Equipped with either a screw pump or metering pump (standard) for accurate and adjustable chemical injection.
Compact and Integrated Design: Base-free structure with a streamlined layout offers a compact footprint, aesthetic appearance, and ease of maintenance.
Packing and Delivery
1. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
2. The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.
FAQ:
Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, or directly contact us by the clicking the “contact” icon. We Can Assist You In Model Selection.
Q: Where Is Your Factory Located?
A: Yixing City, We are in the famous city of environmental protection equipment ,professional for Sludge screw press dewatering Machine ,Which Is Very Close To Shanghai With Only Less Than 3 Hours' Driving. Welcome for your visiting.
Q: Do You Provide OEM Service?
A: Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.
Q: How About The Production Capacity Of Your Company?
A: Our Factory Covers Area Over 15,000m² And Produces Machines 2000 Sets Per Year.
Q: How Could We Trust You And Your Company? Is This Your First Time Transaction?
A: A: Our Company Has More Than 20 Years Professional Experience. We Cooperate Over 800 Customers in China And Overseas. We Export Nearly 60 Countries All Over The World. And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates.
Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts, Field Maintenance Repair Service
