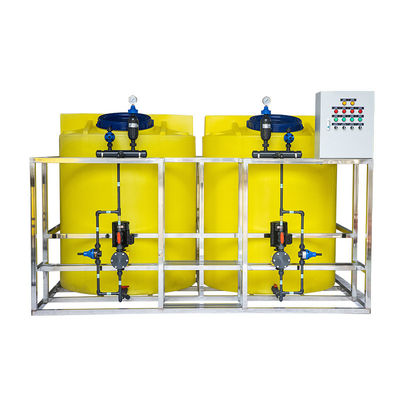

Low-Consumption Automatic Polymer Dosing System for Wastewater Treatment
Our intelligent chemical dosing system uses sensor signals to automatically control the operation of dosing pumps. By monitoring parameters such as pH and conductivity, the system ensures precise chemical dosing to maintain optimal wastewater treatment conditions.
During operation, the target parameter (e.g., pH or conductivity) is set based on system requirements. If the pH deviates from the set point—indicating increased acidity (risk of corrosion) or alkalinity (risk of scaling)—the sensors trigger the control system to activate the dosing pump. Chemicals are injected until values return to the desired range, after which the pump automatically shuts off. This ensures efficient, automated, and responsive treatment.
Three-Tank Integrated Design – Enables continuous preparation, offering ease of operation and maintenance.
Dual Feeding Options – Supports both dry powder and liquid polymer, accommodating varied treatment needs.
Fully Automated PLC Control – Reduces manual intervention and improves operational efficiency.
Precise Dosing Mechanism – Utilizes a screw pump or metering pump (default: screw pump) for accurate and adjustable chemical delivery.
Compact and Base-Free Structure – Sleek, easy-to-maintain design with a small footprint.
| Model | QJY-500 | QJY-1000 | QJY-1500 | QJY-2000 | QJY-3000 |
|---|---|---|---|---|---|
| Max Capacity (L/h) | 500 | 1000 | 1500 | 2000 | 3000 |
| Dimensions (L×W×H mm) | 900×1500×1650 | 1000×1625×1750 | 1000×2440×1800 | 1220×2440×1800 | 1220×3200×2000 |
| Powder Dosing Power (kW) | 0.18 | 0.18 | 0.18 | 0.18 | 0.18 |
| Agitator Blade Diameter (mm) | 250 | 250 | 250 | 250 | 250 |
| spindle speed (r/min) | 96 | 96 | 96 | 96 | 96 |
| Mixer Power (kW) | 0.55 × 2 | 0.55 × 2 | 0.55 × 2 | 0.55 × 2 | 0.55 × 2 |
| Screw Pump Flow (m³/h) | 1 | 1 | 1.5–2.0 | 1.5–2.0 | 3.0–5.0 |
| Lift (m) | 20 | 20 | 20 | 20 | 20 |
| Screw Pump Power (kW) | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 |
| Inlet/Outlet Diameter (mm) | 20 | 20 | 25 | 25 | 32 |
The system employs a jet mixer that uses high-speed water flow to disperse chemicals or powder, enhancing fineness and accelerating dissolution.
The three-tank overflow configuration ensures continuous preparation, maturation, and dosing. By leveraging gravity and solubility differences, the system automatically separates dissolved and undissolved substances. A low-speed agitator further enhances solution homogeneity, ensuring consistent and efficient chemical feeding.
Optimized for: Wastewater Treatment Plants, Industrial Water Recycling, Effluent Management.
Key Benefits: Energy-Saving, Automated Operation, Accurate Dosing, Low Maintenance.
Packing and Delivery
1. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
2. The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.
FAQ:
Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, or directly contact us by the clicking the “contact” icon. We Can Assist You In Model Selection.
Q: Where Is Your Factory Located?
A: Yixing City, We are in the famous city of environmental protection equipment ,professional for Sludge screw press dewatering Machine ,Which Is Very Close To Shanghai With Only Less Than 3 Hours' Driving. Welcome for your visiting.
Q: Do You Provide OEM Service?
A: Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.
Q: How About The Production Capacity Of Your Company?
A: Our Factory Covers Area Over 15,000m² And Produces Machines 2000 Sets Per Year.
Q: How Could We Trust You And Your Company? Is This Your First Time Transaction?
A: A: Our Company Has More Than 20 Years Professional Experience. We Cooperate Over 800 Customers in China And Overseas. We Export Nearly 60 Countries All Over The World. And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates.
Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts, Field Maintenance Repair Service
